Product Information:
The laser is a laser generator that emits a super-density laser beam, which is irradiated on the metal plate by a light spot, and the cutting material is melted or vaporized at a high temperature, and then the high-pressure gas is used to blow off the melted melt and residue to achieve cutting. Seam, and then through the X, Y, Z three-axis linkage to achieve cutting.
Product Data:
| NAME | LASER CUTTING MACHINE |
| MODEL | HN-1530-1000W |
| Maximum running speed | 70m/min |
| Laser wavelength | 1080 nm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 50--1000W |
| X, Y axis positioning accuracy | ≤±0.015㎜ |
| Repeated positioning accuracy of worktable | ≤±0.015㎜ |
| Maximum load of worktable | 500KG |
| Effective processing area | 1500*3000mm, |
| Z axis travel | 120mm |
| Area | 4800*2300*1800 MM |
| Machine power | 12KW |
| Chiller | 2kw |
| Power supply | 380v±10% |
| Red light positioning | provide |
Product Application:
Applicable material range:
It can meet the cutting needs of carbon steel, stainless steel and other metal plates. It is an ideal choice for the processing of medium and thin plates.
Industry application:
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, food machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchenware, craft gifts, Various manufacturing and processing industries such as tool processing, decoration, advertising, and metal external processing.
Product Advantage:
1) Excellent beam quality: smaller focused spot, finer cutting lines, higher work efficiency and better processing quality;
2) Extremely high cutting speed: 2 times of the same power CO2 laser cutting machine;
3) Extremely high stability: The world's top fiber laser is used, with stable performance, and the service life of key components can reach 100,000 hours;
4) Extremely high electro-optical conversion efficiency: fiber laser cutting machine has 3 times higher electro-optical conversion efficiency than CO2 laser cutting machine, which is energy-saving and environmentally friendly;
5) Very low cost of use: the power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;
6) Very low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses; it can save a lot of maintenance costs;
7) Convenient product operation and maintenance: optical fiber transmission, no need to adjust the optical path;
8) Super flexible light guide effect: small size, compact structure, optical fiber transmission, easy to flexible processing requirements.
Product Tags:
|
|

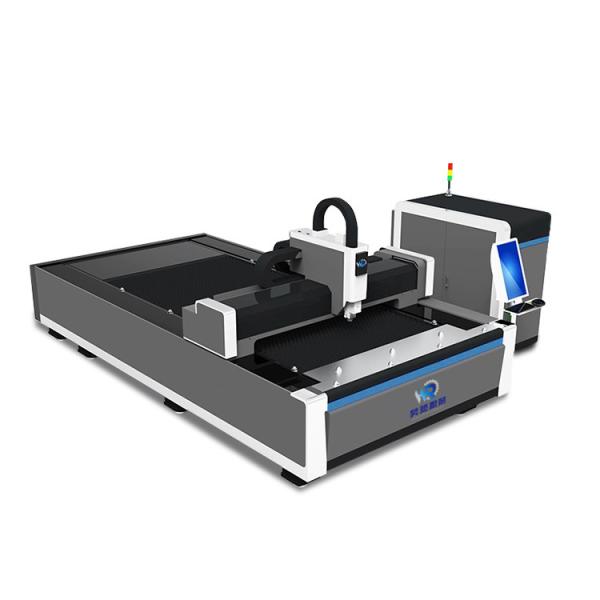

1530 2000W Fiber Laser Cutting Machine For Stainless Steel Iron Aluminum Sheet Images
|
