High Production Efficiency Plate Fiber Laser Cutting Machine For Carton Steel Metal
Machine Information:
Drilling is to open various round holes, square holes, elliptical holes, etc. on metal pipes. If it is a standard hole type and large quantity, the use of traditional equipment CNC punch can ensure the efficiency of drilling and indeed solve the technical requirements of some customers on drilling. However, with the upgrading of the machining process accuracy, many CNC punches are no longer able to meet the requirements of customers. The main reason is that many customers have many kinds of holes, and the amount of each type of pass is not very large. If CNC punches are used, the cost of specialized die opening is very high. In addition, the accuracy of CNC punch is not very high. For materials with slightly thicker pipes and higher accuracy requirements, there is no way to start.
At this time, the high-precision fiber laser pipe cutting machine is more suitable, because the fiber laser pipe cutting machine has high cutting precision and faster speed than the traditional NC drilling machine, which can meet the customer's requirements in terms of efficiency or effect. Longxin laser is aimed at the needs of users, and the multi-function laser tube cutting machine developed by the company needs cutting, opening, cutting angles, cutting orifice and pipe carving and hollowing. It can cut freely for different tube types, and can choose the laser tube cutting machine for high efficiency production for the users with higher technological requirements in the processing industry.
Machine Data:
| Model | 3015 | 4020 | 6020 | Option |
| Working area | 3000*1500mm | 4000*2000mm | 6000*2000mm | According to demands |
| Maxim running speed | 70m/min |
| Laser wavelength | 1080 nm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 1000W |
| Repeated positioning accuracy of worktable | ≤±0.015㎜ |
| Maximum load of worktable | 500KG |
| Z axis travel | 120mm |
| Machine power | 12KW |
| Chiller | 2kw |
| Power supply | 380v±10% |
| Red light positioning | provide |
| X/Y axis positioning accuracy | ±0.03mm |
| X/Yaxis repeat positioning accuracy | ±0.02mm |
| X/Y axis repeat positioning accuracy | 140M/MIN |
| Maximum acceleration | 0.6G-1.5G |
Machine Characteristic:
1. Low power consumption cost, can blow air to cut various metal pipes.
2. Fast cutting speed, high loading and unloading efficiency of interchangeable worktable and labor saving.
3. Good spot quality, small deformation, flat and beautiful appearance.
4. Imported servo motor and guide transmission mechanism are adopted, with high cutting precision.
5. Professional software can be used to design various circles or characters at will for real-time processing, which is flexible and easy to operate.
6. High stability. Imported light laser is adopted, with stable performance. The service life of key components can reach 100000 hours, and the laser is maintenance free.
7. Low maintenance cost, no laser working gas: light transmission, no reflector, which can save a lot of maintenance cost.
8. The product is easy to operate and maintain, light transmission, and there is no need to adjust the optical path.
Machine Application:
Application fields:
It can cut a variety of metal plates and pipes (pipe cutting device can be added). It is mainly suitable for rapid cutting of stainless steel, carbon steel, galvanized plate, electrolytic plate, brass plate, aluminum plate, manganese steel, various alloy plates, rare metals and other materials;
Widely used in:
Electric power, automobile manufacturing, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, automobile decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products and other industries;
Product Tags:
|
|

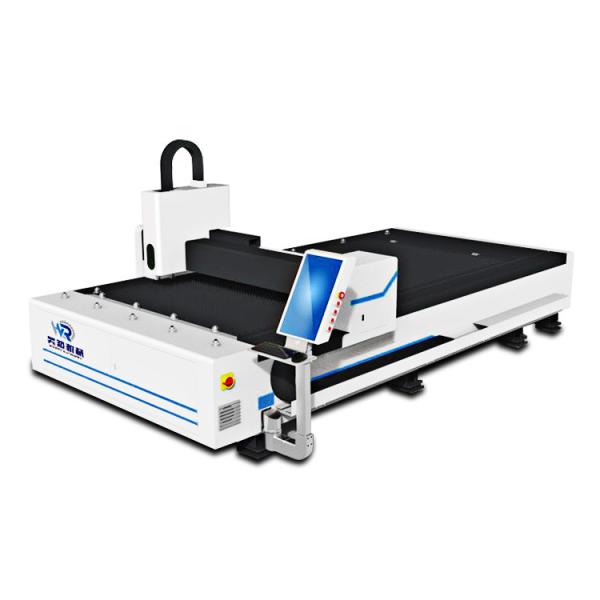

CYPCUT Control Plate Fiber Laser Cutting Machine For Carton Steel Images
|
