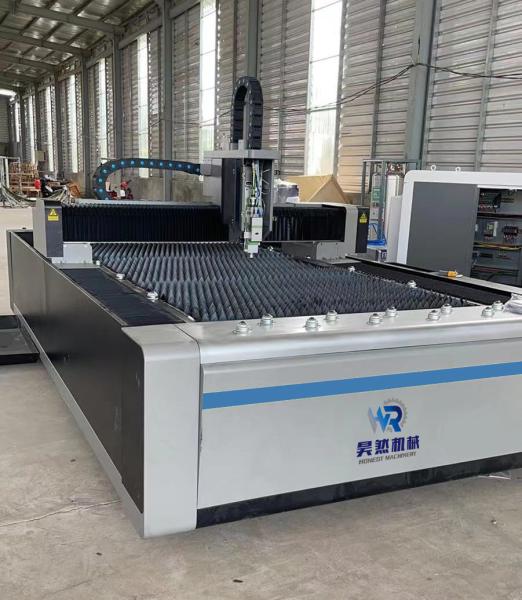

Servo Motor Drive Fiber Laser Cutting Machine
The laser cutting machine is to focus the laser light emitted from the laser into a high-power density laser beam through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point, and the high-pressure gas coaxial with the beam blows away the molten or vaporized metal. With the movement of the relative position of the beam and the workpiece, the material will finally form a slit, so as to achieve the purpose of cutting.
| Model | HN-1530/HN-2040/HN-2060 |
| Working area | 1500mm*3000mm |
| Laser type | Fiber laser |
| Rated laser power (optional) | 1000W-12000w |
| Traditional system | Gantry double drive structure |
| lubrication system | Fully automatic |
| Maximum speed | 100m/min |
| Maximum acceleration | 1.0G |
| positioning accuracy | ±0.01mm/1000mm |
| Repeated positioning accuracy | ±0.03mm/1000mm |
| Support for graphic formats | CAD, DXF(etc) |
| work environment | 0-40 ℃, humidity ≤ 80%, no condensation |
| Total power | 20KW |
| Power demand | Three phase 380V / 50Hz / 60Hz |
| Outline size | 4420mm*2320mm*1750mm |
| Total weight approximately | 4000KG |
The advantages of fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption,it is only about 20%-30% of traditional CO2 laser cutting machine.
Factory introduction
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in the R & D of CNC equipment. It integrates development, production and sales.
The company has a series of optical fiber laser cutting machines, plasma cutting machines, CNC engraving machines and other products, which are widely used in metal, machinery, mold, advertising, wood processing, stone processing and other industries. The equipment is sold all over the provinces and autonomous regions of the country, and exported to Russia, Mongolia, Mongolia and other countries. With advanced manufacturing technology, large-scale production and high-quality product quality, Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
Integrity products have been widely used in advertising industry, woodworking industry, craft gifts, building models, electronics, CAD / CAM industrial mold industry, decoration, clothing, packaging and printing, logo, seal and other industries; Due to its unique cost performance, it has completely replaced imported similar products in various domestic application fields.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
